3D Scan Sprey
3D Scan Sprey

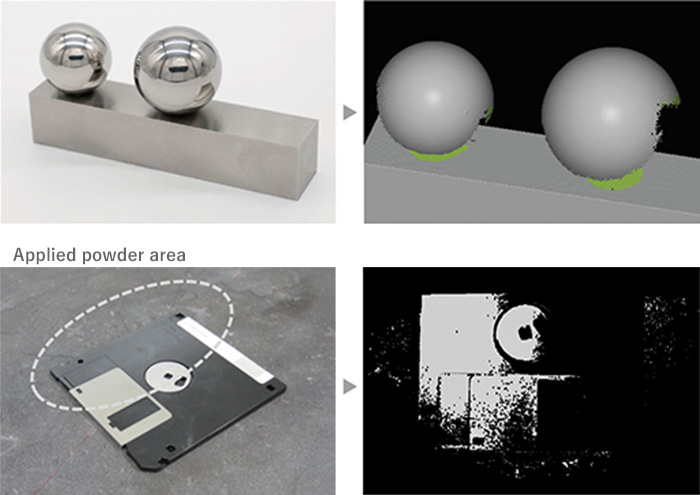

By forming a white surface on a glossy or black surface, which is difficult for optical non-contact measurement, and obtaining a suitable amount of reflected light for measurement, it is possible to easily measure 3D shapes.
JetSwan uses a specially selected spray material. The effect of the unevenness of the applied powder is minimal, and the shape of the measurement object can be accurately measured.
Quick-drying properties prevent uneven coating due to dripping.

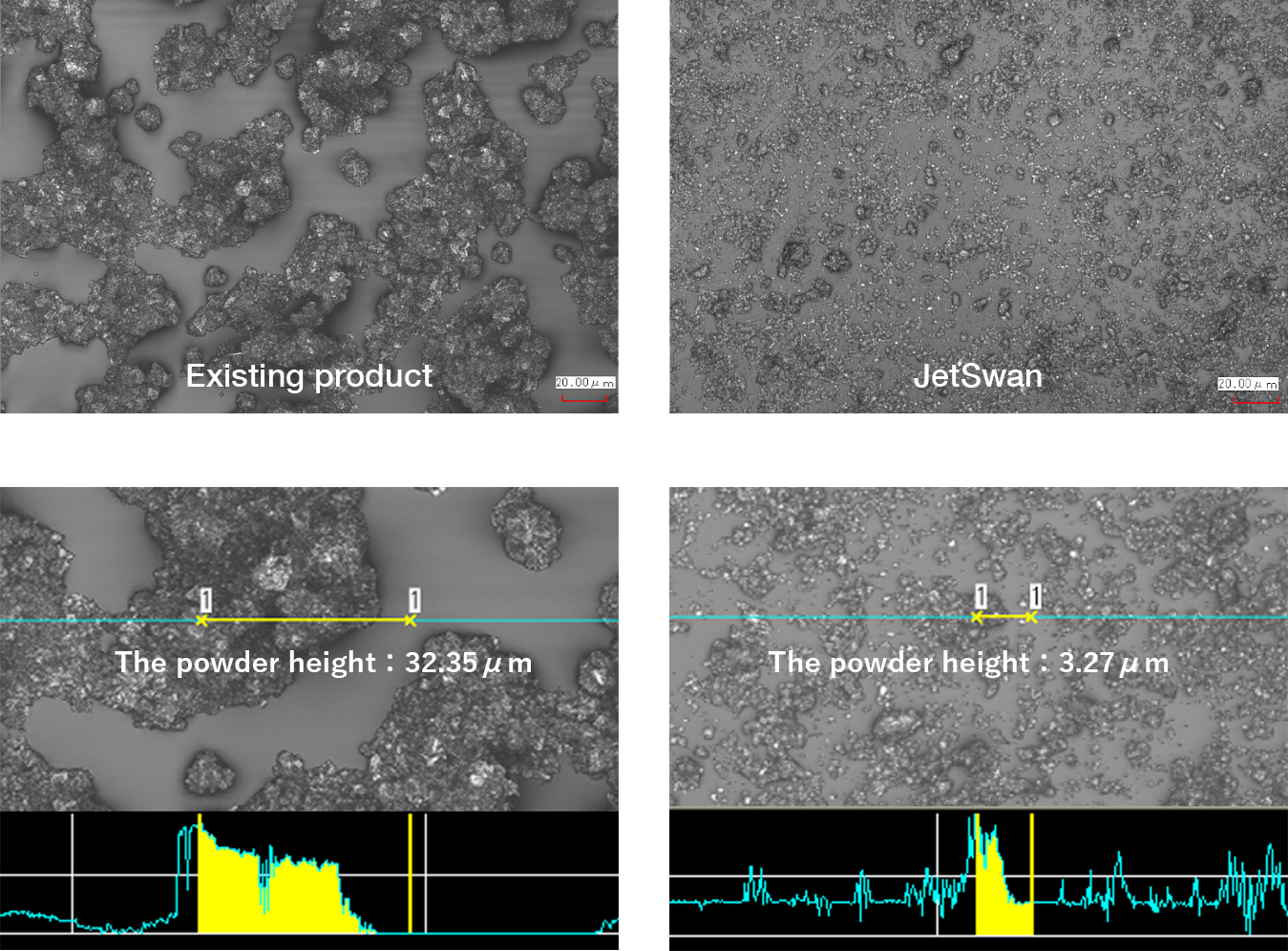

Layer thickness measurement
Spray twice from 200mm on optical flat covered by masking tape and move the spray at a speed 150mm/s. Tear off the tape, then measure the edge between coating and uncoating section by microscope. The value of edge will be layer thickness.

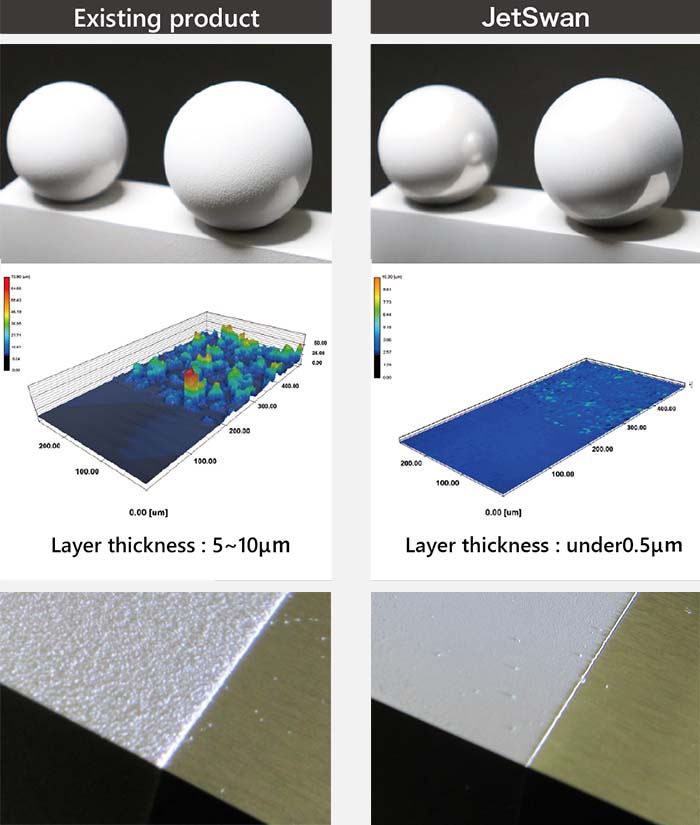

Test result of layer thickness
JetSwan forms an ultra-thin layer on the object surface, which has the least influence on the measurement.
| May 11, 2021 | "JetSwan"Started selling |
| May 11, 2021 | Published in the "Nikkan Kogyo Shimbun" |
| Product name | JetSwan |
|---|---|
| Ingredients | isopropanol, calcium carbonate, butane |
| Contents | 420 ml / 14.2 oz |
| Order unit | box of 24 cans (free shipping) / small box of 6cans (plus shipping) |
| Price | *** |
| Distributor | FUJIOKA CO.,Ltd Tottori Office Inoue building No.201, 374-8 Agei, Kurayoshi, Tottori, Japan 682-0021 |
| Contact | jetswan@fujioka-coltd.co.jp |
